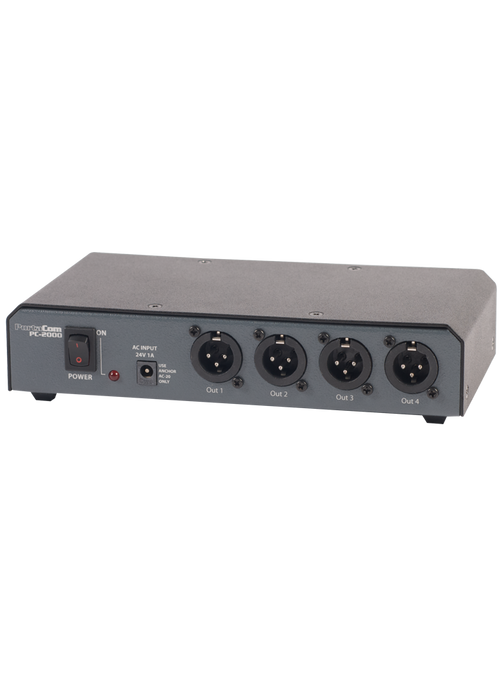

PC-2000 | PortaCom power console
The PC-2000 is the power console for the Anchor Audio PortaCom wired intercom system.
- Output Connectors: Four 3-pin XLR male
- Voltage Output: 22 VDC to belt packs
- Maximum Current Capacity: 400 mA
- Maximum Quantity of Beltpacks: 20 BP-2000 beltpacks
- Input Power Requirements: 24VAC, 50/60Hz, 750mA, 30-40VDC, 500mA
- AC Power Adapter: AC-20
- Dimensions (HWD): 1.75” x 8.5” x 4.5” (4.45 x 21.6 x 10.2 cm)
- Weight: 3.6 lbs / 1.6 Kg
If you'd like to rack mount your power console, Anchor Audio recommends the RM-100.
