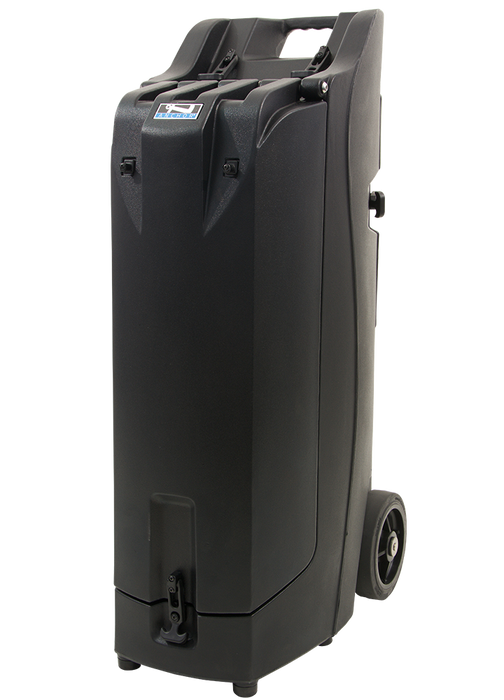

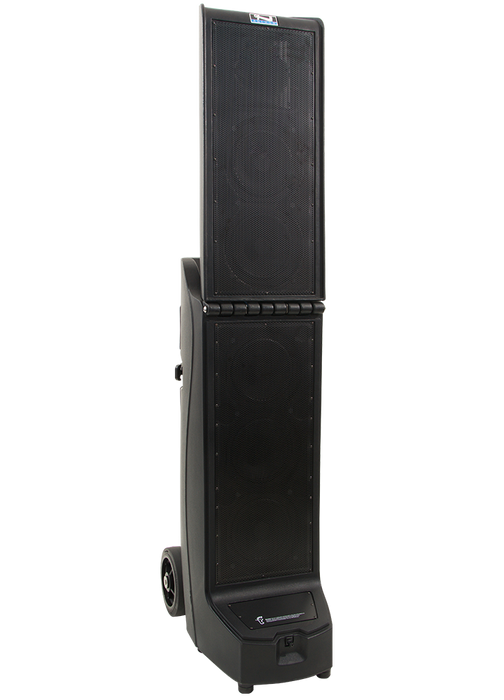

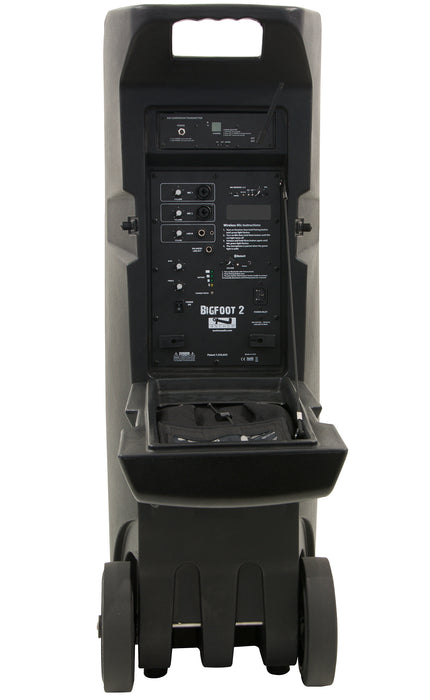

BIGFOOT 3 HUB+CONNECT PACKAGE *SAVE10 coupon eligible
$10,120.00
SKU: 984200

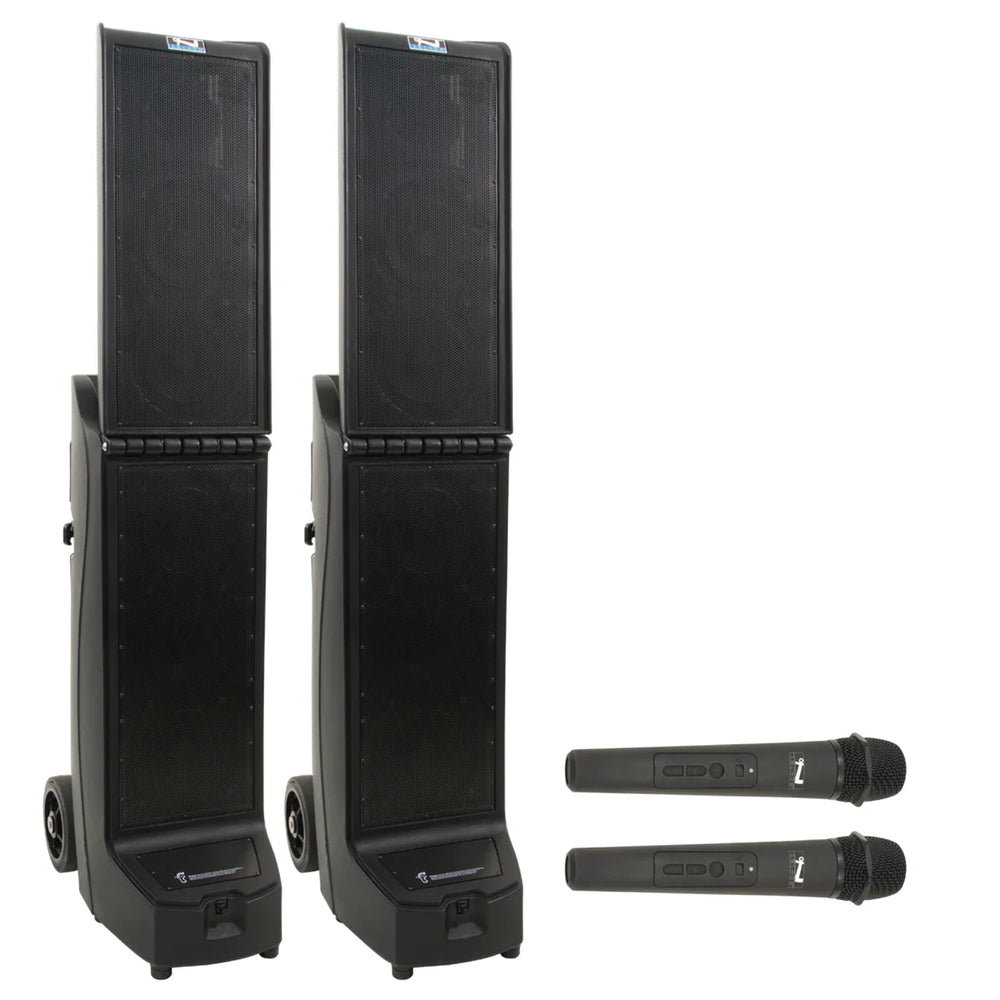

- Qty1: BIG3-TU2 - Bigfoot Speaker with AnchorLink Wireless Mic Receiver and AnchorFlex Transceiver
- Qty 1: BIG3-T - Bigfoot Speaker with AnchorFlex Transceiver
- Qty 2: WH-LINK - AnchorLink Handheld Wireless Mics
- Package SKU: 984200
Each Bigfoot speaker:
- Weight: 64 lbs
-

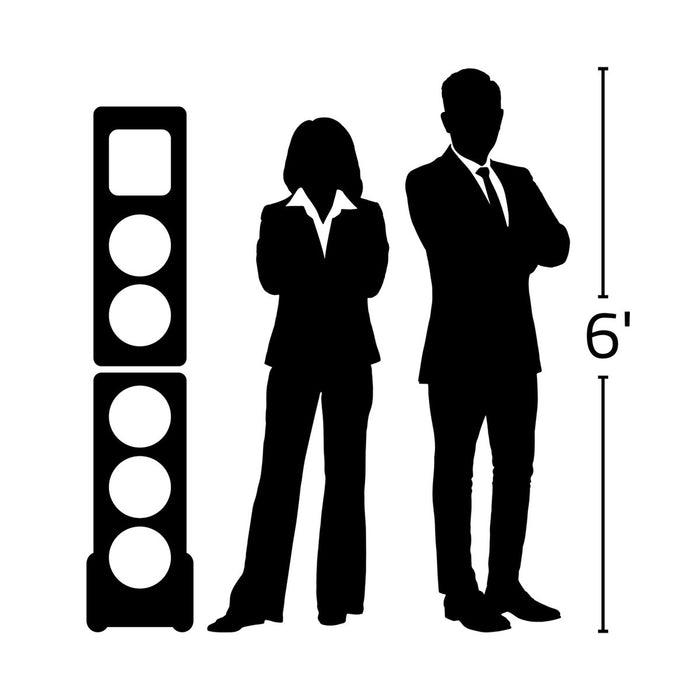

Dimensions: (Height x Width x Depth)
68.5" x 14" x 23" Opened
42.5" x 14" x 23" Closed -
Coverage:
* area: approximately 150' x 150'
* crowd size: approximately 2500
Bigfoot speakers include line array components:
- Five 8” neodymium woofers
- One neodymium compression
Technical Specifications
- Rated Power Output: 300 watts
- Max SPL @ Rated Power: 130 dB @ 1 meter
- Frequency Response: 100 Hz ~ 15 kHz ± 3dB
- AC Power Reqs:
100~240 VAC, 50/60 Hz, 3.5A - Charger/Power Inlet: PC-2
- Battery
Three 12V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each
Full recharge: ~ 5 hours - AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN
1880~1900 MHz Europe - AnchorLink Wireless Range: 300’+ line of sight
- AnchorAir Frequency Range:
902~928 MHz USA/CAN
606~614MHz Europe - AnchorAir Wireless Range: 300’+ line of sight
- Microphone Inputs:
* Lo-Z, balanced, XLR & 1/4”
* 34 V DC condenser mic (phantom) power
* Hi-Z (10 kΩ), unbalanced, 1/4” phone - Line Inputs:
* One unbalanced 1/4”
* One 3.5 mm stereo - Line Output (post fader): Isolated, 600Ω
One 1/4” phone - Speaker Out: 4-pole Neutrik Speakon® jack
